愛多電子長期致力于經營新能源高壓保險絲的銷售,成熟產品能做到500V、600V、700V、1000V、3000V、5KV、10KV等,產品品質成熟穩定,歡迎選購:
其產品說明如下:

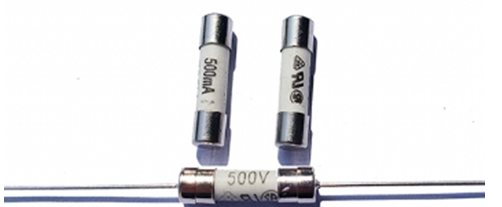

一、 5X20mm高壓保險絲,該特高壓保險管高壓可以做到DC/AC500V、600V、700V、1000V、3000V等型號,具體規格型號如下:
1.規格型號和安規認證:
MODEL NUMBER AND SAFETY CERTIFICATION
·
品名規格:系列號+額定電流+額定電壓+認證符號
Model Number: Part Number+Rated Current+Rated Voltage+Approvals.
例子[example]:
5CH
1A 1000V 1)系列號 Part Number
2)額定電流 Rated Current
1)
2) 3)
3)額定電壓 Rated Voltage
1-2 額定電流和額定電壓
Rated Current And Voltage
額定電流: 63mA~1
Rated Current: 63mA~1
額定電壓:500V/600V/1000V AC/DC
Rated Voltage: 500V/600V/1000V AC/DC
1-3標示Marking
保險管上需有下列標示
The fuse shall have the following marking:
規格:特性符號+額定電流+額定電壓
Specification:Characteristic Symbol+Rated Voltage
63mA~800mA : _mA500V/600V/1KV 1A~1:_A500V/600V/1KV
Trade mark:The Manufacture’s Logo+Part Number+Approvals
63mA~1:
注意:對標示字樣大小沒有規定
Note:Size of the markings have not be specified.
2.適用范圍
SCOPE
適用于一般電子設備。Used in electronic equipment.
3.工程圖和結構
OUTLINE DRAWING AND STRUCTURE

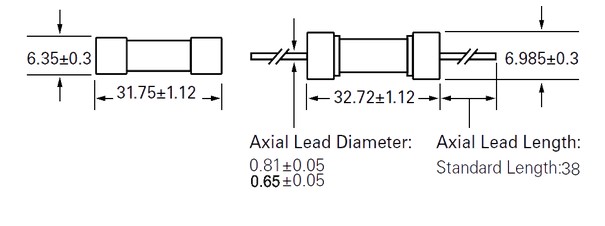

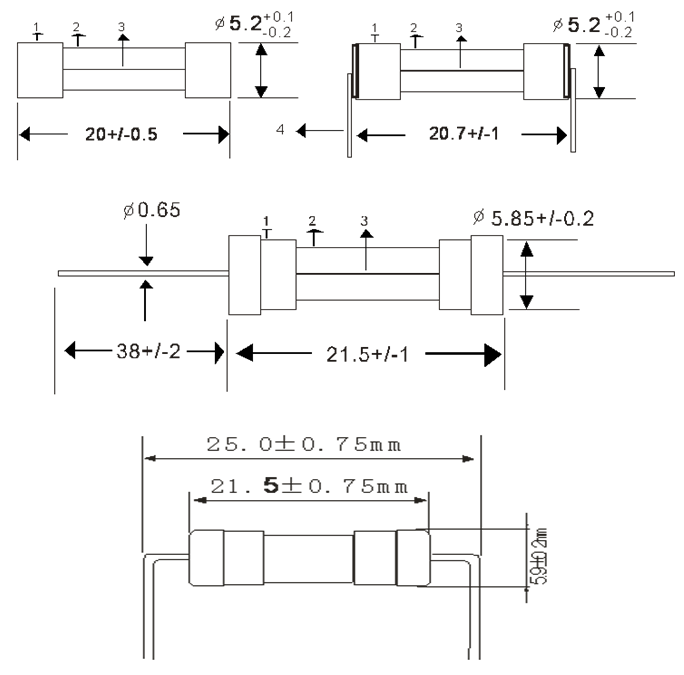

3-1 工程圖(單位:mm)
Outline Drawing and Dimensions(Unit:mm)
3-2結構
Structure
編號
No.
|
元件
Component
|
材質
Material
|
數量
Quantity
|
(1)
|
熔絲
Wire
|
合金
Alloy
|
1
|
(2)
|
銅帽
Cap
|
黃銅鍍鎳
Brass with mickel plated
|
2
|
(3)
|
本體
Body
|
玻璃管
CERAMIC Tube
|
1
|
(4)
|
引線
Lead
|
鍍錫銅線
Tinned Copper wire
|
2
|
4.外觀及形狀
APPEARANCES AND CONFIGURATION
4-1外觀:不應有破碎、明顯的瘀斑
Appearances:There shall no fragmentation and of remarkable blotch.
4-2形狀:帶腳的保險絲
Configuration:Axial Leaded Fuse.
5.物理特性
PHYSICAL CHARACTERISTIC
5-1 拉力測試
Tensile test
沿端子的軸向施加10N的拉力,持續1分種。
Keep pulling the cap of the fuse with 10N at axial direction for 1 min.
6.電氣特性
ELECTRICAL CHARACTERISTICS
熔斷/電流特性:
Pre-Arcing Time/Current Characteristic
a、Breaking capacity(分?jǐn)嗄芰Γ?Time Lag and Fast Acting)
15000A
|
500/600V/1KV/3KV
|
AC/DC
|
b、Electrical characteristics
Time Lag(國標、歐標CCC/VDE)
RATED CURRENT
|
2.1IN
|
2.75IN
|
4IN
|
10IN
|
32mA to 100mA
|
Max.
|
Min.
|
Max.
|
Min.
|
Max.
|
Min.
|
Max.
|
30 min.
|
1S
|
80S
|
95mS
|
5S
|
10mS
|
100mS
|
大于100mA
|
30 min.
|
1S
|
80S
|
150mS
|
5S
|
20mS
|
100mS
|
Fast Acting
RATED CURRET
|
2.1IN
|
2.75IN
|
4IN
|
10IN
|
大于50mA
|
Max.
|
Min.
|
Max.
|
Min.
|
Max.
|
Max.
|
30 min
|
10ms
|
2S
|
3ms
|
300ms
|
20ms
|
美標(UL)
Rated current
|
1IN
|
1.35IN
|
2IN
|
MIN
|
MAX
|
MAX
|
63mA~1
|
4Hrs
|
1hr
|
5Sec
|
c、Temperature character
When 100% of rating the temperature rise doesn’t exceed 75℃.
d、Approvals
Catalogue number
|
Rated current
|
Voltage
|
參照美標、歐標
|
5CFP/5CTP
|
63mA~1
|
500/600V/1KV
|
7.環境特性
ENVIRONMENTAL SPECIFICATION
7-1 操作溫度范圍:-5℃~60℃
Operating Temperature: -5℃~60℃
7-2 保存條件
Storage Conditions
溫度:+10℃~60℃
Temperature: +10℃~60℃
在相對濕度≤75%下平均可存放3年
On average, It can be stored below the relative humidity or 75% for 3 years.
在非露天下,相對濕度為95%下多可存放30天。
Without dew, It can be kept under humidity of 95% for 30 days.
8.焊接條件
SOLDERING PAAMETERS
8-1波峰焊
Wave Solder
焊接溫度:260±5℃
Soldering Temperature:260±5℃
焊接時間:4 Sec. Max.
Soldering Time:4 Sec.Max.
8-2手工焊錫
Manual Solder
焊接溫度:350±5℃
Soldering Temperature: 350±5℃
焊接時間:3 Sec. Max.
Soldering Time: 3 Sec. Max.
9.其他使用注意事項
OTHER NOTICE IN USING
如果需在保險絲上加熱縮套管,烘烤溫度與時間需參照以下規定
If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
設定烘烤溫度:不大于150℃ 烘烤時間:50s Max.
The temperature should be sel under 150℃,roast time:50s Max.
二、 6.35X32mm特高壓保險管規格如下,該特高壓電流保險管高壓可以做到500V、600V、1000V、3000V等規格,更多型號請電聯。
1.規格型號和安規認證:
MODEL NUMBER AND SAFETY CERTIFICATION
1-1 品名規格:系列號+額定電流+額定電壓+認證符號
Model Number: Part Number+Rated
Current+Rated Voltage+Approvals.
例子[example]:
6CFUP 10A
500V
1)系列號 Part Number
2)額定電流 Rated Current
1) 2) 3) 3)額定電壓 Rated Voltage
1-2 額定電流跟額定電壓
Rated Current And Voltage
額定電流: 63mA~30A
Rated Current: 63mA~30A
額定電壓: 500V/600V AC/DC
Rated Voltage: 500V/600V AC/DC
1-3標示Marking
保險絲上需有下列標示
The fuse shall have the following marking:
規格:特性符號+額定電流+額定電壓
Specification:Characteristic Symbol+Rated Voltage
63mA~800mA : _mA250V/500V
1A~30A:_A250V/500V
Trade mark:The Manufacture’s Logo+Part Number+Approvals
63mA~30A:
注意:對標示字樣大小沒有規定
Note:Size of the markings have not be specified.
2.適用范圍
SCOPE
適用于一般電子設備。Used in electronic equipment.
3.工程圖和結構
OUTLINE DRAWING AND STRUCTURE
3-1 工程圖(單位:mm)
Outline Drawing and Dimensions(Unit:mm)
3-2結構
Structure
編號
No.
|
元件
Component
|
材質
Material
|
數量
Quantity
|
(1)
|
熔絲
Wire
|
合金
Alloy
|
1
|
(2)
|
銅帽
Cap
|
黃銅鍍錫
Brass with mickel plated
|
2
|
(3)
|
本體
Body
|
陶瓷管
CERAMIC Tube
|
1
|
(4)
|
引線
Lead
|
鍍錫銅線
Tinned Copper wire
|
2
|
4.外觀及形狀
APPEARANCES AND CONFIGURATION
4-1外觀:不應有破碎、明顯的瘀斑
Appearances:There shall no fragmentation and of remarkable blotch.
4-2形狀:帶腳的保險管
Configuration:Axial Leaded Fuse.
5.物理特性
PHYSICAL CHARACTERISTIC
5-1 拉力測試
Tensile test
沿端子的軸向施加10N的拉力,持續1分鐘。
Keep pulling the cap of the fuse with 10N at axial direction for 1 min.
6.電氣特性
ELECTRICAL CHARACTERISTICS
熔斷、電流特性:
Pre-Arcing Time/Current Characteristic
a、Breaking capacity(分?jǐn)嗄芰Γ?/strong>(Time Lag and Fast Acting)
b、Electrical characteristics
Fast Acting(參照美標)
Rated current
|
135%
|
200%
|
63mA~30A
|
Max.
|
Max.
|
1 hour
|
120 sec
|
c、Temperature character
When 100% of rating the temperature rise doesn’t exceed 75℃.
d、Approvals
Catalogue number
|
Rated current
|
Voltage
|
參照國標,美標
|
6CFUP
|
63mA~30A
|
250V/500V
|
7.環境特性
ENVIRONMENTAL SPECIFICATION
7-1 操作溫度范圍:-5℃~60℃
Operating Temperature: -5℃~60℃
7-2 保存條件
Storage Conditions
溫度:+10℃~60℃
Temperature: +10℃~60℃
在相對濕度≤75%下平均可存放3年
On average, It can be stored below the relative humidity or 75% for 3
years.
在非露天下,相對濕度為95%下最多可存放30天。
Without dew, It can be kept under humidity of 95% for 30 days.
8.焊接條件
SOLDERING PAAMETERS
8-1波峰焊
Wave Solder
焊接溫度:260±5℃
Soldering Temperature:260±5℃
焊接時間:4 Sec. Max.
Soldering Time:4 Sec.Max.
8-2手工焊錫
Manual Solder
焊接溫度:350±5℃
Soldering Temperature: 350±5℃
焊接時間:3 Sec. Max.
Soldering Time: 3 Sec. Max.
9.其他使用注意事項
OTHER NOTICE IN USING
如果需在保險絲上加熱縮套管,烘烤溫度與時間需參照以下規定
If heat shrink tubing was needed,the roast temperature and time should
be refer to the following.
設定烘烤溫度:不大于150℃ 烘烤時間:50s Max.
The temperature should be sel under 150℃,roast
time:50s Max.

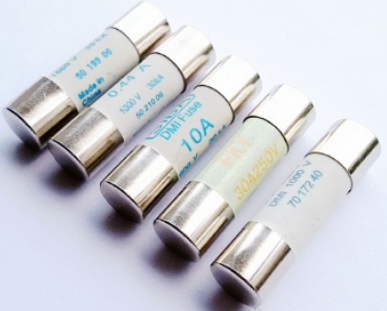

三、 10X38mm特高壓系能源保險絲,該特高壓電流保險管可以按照客戶要求做到500V、600V、1000V、3000V 等,更多規格請電話聯系。
1.規格型號和安規認證
MODEL NUMBER AND SAFETY CERTIFICATION
·
品名規格:系列號+額定電流+額定電壓+認證符號
Model Number: Part Number+Rated Current+Rated Voltage+Approvals.
例子[example]:
10HCU 40A 500V 1)系列號 Part Number
2)額定電流 Rated Current
1)
2) 3) 3)額定電壓 Rated Voltage
1-2 額定電流和額定電壓
Rated Current And Voltage
額定電流: 100mA~50A
Rated Current: 100mA~50A
額定電流;125V/250V~1000V AC
Rated Voltage:125V/250V~1000V AC
1-3標示Marking
保險管上需要有下列標示
The fuse shall have the following marking:
規格:特性符號+額定電流+額定電壓
Specification:Characteristic Symbol+Rated Voltage
100mA~800mA : _mA500V 1A~50A:_A500V
Trade mark:The Manufacture’s Logo+Part Number+Approvals
100mA~500A:
注意:對標示字樣大小沒有規定
Note:Size of the markings have not be specified.
2.適用范圍
SCOPE
適用于一般電子設備。Used in electronic equipment.
3.工程圖和結構
OUTLINE DRAWING AND STRUCTURE

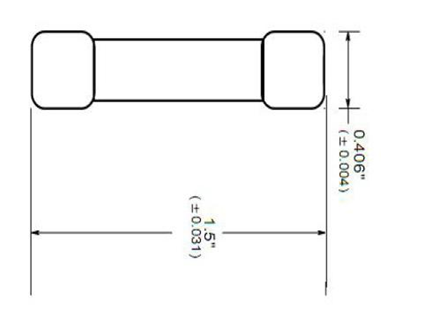

3-1 工程圖(單位:mm)
Outline Drawing and Dimensions(Unit:mm)
3-2結構
Structure
編號
No.
|
元件
Component
|
材質
Material
|
數量
Quantity
|
(1)
|
熔絲
Wire
|
合金
Alloy
|
1
|
(2)
|
銅帽
Cap
|
黃銅鍍錫
Brass with mickel plated
|
2
|
(3)
|
本體
Body
|
陶瓷管
CERAMIC Tube
|
1
|
4.外觀及形狀
APPEARANCES AND CONFIGURATION
4-1外觀:不應有破碎、明顯的瘀斑
Appearances:There shall no fragmentation and of remarkable blotch.
4-2形狀:帶腳的保險管
Configuration:Axial Leaded Fuse.
5.物理特性
PHYSICAL CHARACTERISTIC
5-1 拉力測試
Tensile test
沿端子的軸向施加10N的拉力,持續1分鐘。
Keep pulling the cap of the fuse with 10N at axial direction for 1 min.
6.電氣特性
ELECTRICAL CHARACTERISTICS
熔斷/電流特性:
Pre-Arcing Time/Current Characteristic
a、Electrical characteristics
Fast Acting(參照美標)
Rated current
|
135%
|
200%
|
100mA~50A
|
Max.
|
Max.
|
1 hour
|
120 sec
|
b、Temperature character
When 100% of rating the temperature rise doesn’t exceed 75℃.
7.環境特性
ENVIRONMENTAL SPECIFICATION
7-1 操作溫度范圍:-5℃~60℃
Operating Temperature: -5℃~60℃
7-2 保存條件
Storage Conditions
溫度:+10℃~60℃
Temperature: +10℃~60℃
在相對濕度≤75%下平均可存放3年
On average, It can be stored below the relative humidity or 75% for 3 years.
在非露天下,相對濕度為95%下多可存放30天。
Without dew, It can be kept under humidity of 95% for 30 days.
8.其他使用注意事項
OTHER NOTICE IN USING
如果需要在保險管上加熱縮套管,烘烤溫度與時間需要參照以下規定
If heat shrink tubing was needed,the roast temperature and time should be refer to the following.
設定烘烤溫度:不大于150℃ 烘烤時間:50s Max.
The temperature should be sel under 150℃,roast time:50s Max.
|
