Microresisitor type current fuse |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Name：Microresisitor type current fuse |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hits：22221 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Description： |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

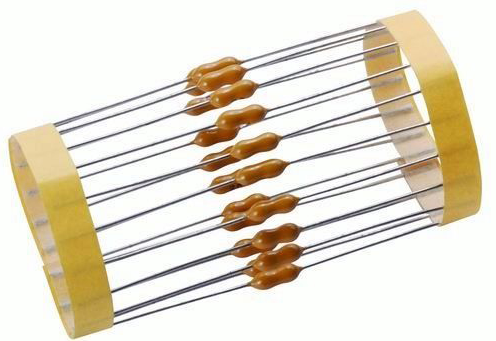

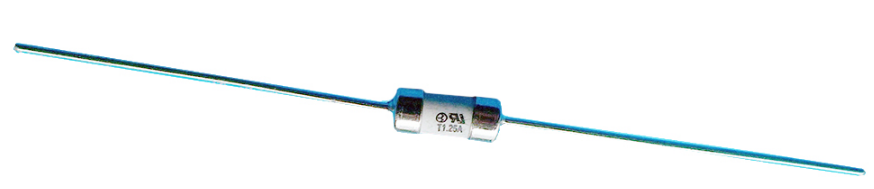

Eidoll sales the microreesistor type current fuse ,all the specification as bellow: 一、 2T 3*8 microresistor type current fuse

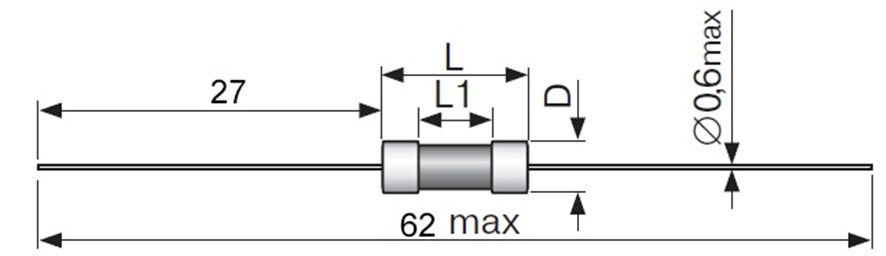

Specification 1.MODEL NUMBER AND SAFETY CERTIFICATION 1-1 Model Number: Part Number+Rated Current+Rated Voltage+Approvals. example: 2T 1.2 250V 1)Part Number 2) Rated Current 1） 2） 3） 3) Rated Voltage 1-2Rated Current And Voltage Rated Current: 32 mA~1 Rated Voltage:125V/250V/400 AC 1-3Marking The fuse shall have the following marking: Specification:Characteristic Symbol+Rated Voltage 32mA~800mA : _mA 1A~1:_A Trade mark:The Manufacture’s Logo+Part Number+Approvals 32mA~1:UL CSA Note:Size of the markings have not be specified. 2.SCOPE Used in electronic equipment. 3.OUTLINE DRAWING AND STRUCTURE 3-1 Outline Drawing and Dimensions(Unit:mm)
3-2.Structure
4.APPEARANCES AND CONFIGURATION 4-1Appearances:There shall not be any remaekable stain,rust or crack on the appearances. 4-2Configuration:Axial Leaded Micro-Fuse. 5.PHYSICAL CHARACTERISTIC 5-1 Tensile test Keep pulling the cap of the fuse with 10N at axial direction for 1 min. 6.ELECTRICAL CHARACTERISTICS
7.ENVIRONMENTAL SPECIFICATION 7-1 Operating Temperature: -55℃~125℃ 7-2 Storage Conditions Temperature: +10℃~60℃ On average, It can be stored below the relative humidity or 75% for 3 years. Without dew, It can be kept under humidity of 95% for 30 days. 8.SOLDERING PAAMETERS 8-1Wave Solder Soldering Temperature:260±5℃ Soldering Time:4 Sec.Max. 8-2Manual Solder Soldering Temperature: 350±5℃ Soldering Time: 3 Sec. Max. 9.OTHER NOTICE IN USING If heat shrink tubing was needed,the roast temperature and time should be refer to the following. The temperature should be sel under 150℃,roast time:50s Max. 二、 2F-3x8 Resistor fast melt ceramic current fuse
1.MODEL NUMBER AND SAFETY CERTIFICATION 1-1 Model Number: Part Number+Rated Current+Rated Voltage+Approvals. example: 2T 2A 400V 1)Part Number 2)Rated Current 1） 2） 3） 3) Rated Voltage 1-2Rated Current And Voltage Rated Current: 32 mA~1 Rated Voltage:125V/250V/400 AC 1-3Marking The fuse shall have the following marking: Specification:Characteristic Symbol+Rated Voltage 100mA~800mA : _mA 1A~10A:_A Trade mark:The Manufacture’s Logo+Part Number+Approvals 100mA~10A: TUV UL CSA CQC Note:Size of the markings have not be specified. 2.SCOPE Used in electronic equipment. 3.OUTLINE DRAWING AND STRUCTURE 3-1 Outline Drawing and Dimensions(Unit:mm)
3-2Structure
4.APPEARANCES AND CONFIGURATION 4-1Appearances:There shall not be any remaekable stain,rust or crack on the appearances. 4-2Configuration:Axial Leaded Micro-Fuse. 5.PHYSICAL CHARACTERISTIC 5-1 Tensile test Keep pulling the cap of the fuse with 10N at axial direction for 1 min，and the pipe body is continuously opened and broken. 5-2Strength of fuse tube After the fuse pipe body is fixed, the 15N pressure is applied to the center position of the pipe body, and the pipe body is continuously opened and broken. 6.ELECTRICAL CHARACTERISTICS
7.ENVIRONMENTAL SPECIFICATION 7-1 Operating Temperature: -55℃~125℃ 7-2 Storage Conditions Temperature: +10℃~60℃ On average, It can be stored below the relative humidity or 75% for 3 years. Without dew, It can be kept under humidity of 95% for 30 days. 8.SOLDERING PAAMETERS 8-1Wave Solder Soldering Temperature:260±5℃ Soldering Time:4 Sec.Max. 8-2Manual Solder Soldering Temperature: 350±5℃ Soldering Time: 3 Sec. Max. OTHER NOTICE IN USING If heat shrink tubing was needed,the roast temperature and time should be refer to the following. The temperature should be sel under 150℃,roast time:50s Max. 三、2.4X7Microresistor Sow-meltcurrent fuse / TUV UL CSA CQC
Specification as bellow: 1.MODEL NUMBER AND SAFETY CERTIFICATION 1-1 Model Number: Part Number+Rated Current+Rated Voltage+Approvals. example: 2SMT/2T 2A 400V 1) Part Number 2)Rated Current 1） 2） 3） 3) Rated Voltage 1-2Rated Current And Voltage Rated Current: 32 mA~1 Rated Voltage:125V/250V/400 AC 1-3Marking The fuse shall have the following marking: Specification:Characteristic Symbol+Rated Voltage 32mA~800mA : _mA 1A~1:_A Trade mark:The Manufacture’s Logo+Part Number+Approvals 32mA~1: TUV UL CSA CQC Note:Size of the markings have not be specified. 2.SCOPE Used in electronic equipment. 3.OUTLINE DRAWING AND STRUCTURE 3-1 Outline Drawing and Dimensions(Unit:mm)
3-2Structure
4.APPEARANCES AND CONFIGURATION 4-1Appearances:There shall not be any remaekable stain,rust or crack on the appearances. 4-2Configuration:Axial Leaded Micro-Fuse. 5.PHYSICAL CHARACTERISTIC 5-1 Tensile test Keep pulling the cap of the fuse with 10N at axial direction for 1 min，and the pipe body is continuously opened and broken. 5-2Strength of fuse tube After the fuse pipe body is fixed, the 15N pressure is applied to the center position of the pipe body, and the pipe body is continuously opened and broken. 6.ELECTRICAL CHARACTERISTICS
7.ENVIRONMENTAL SPECIFICATION 7-1 Operating Temperature: -55℃~125℃ 7-2Storage Conditions Temperature: +10℃~60℃ On average, It can be stored below the relative humidity or 75% for 3 years. Without dew, It can be kept under humidity of 95% for 30 days. 8.SOLDERING PAAMETERS 8-1Wave Solder Soldering Temperature:260±5℃ Soldering Time:4 Sec.Max. 8-2Manual Solder Soldering Temperature: 350±5℃ Soldering Time: 3 Sec. Max. 9.OTHER NOTICE IN USING If heat shrink tubing was needed,the roast temperature and time should be refer to the following. The temperature should be sel under 150℃,roast time:50s Max.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
